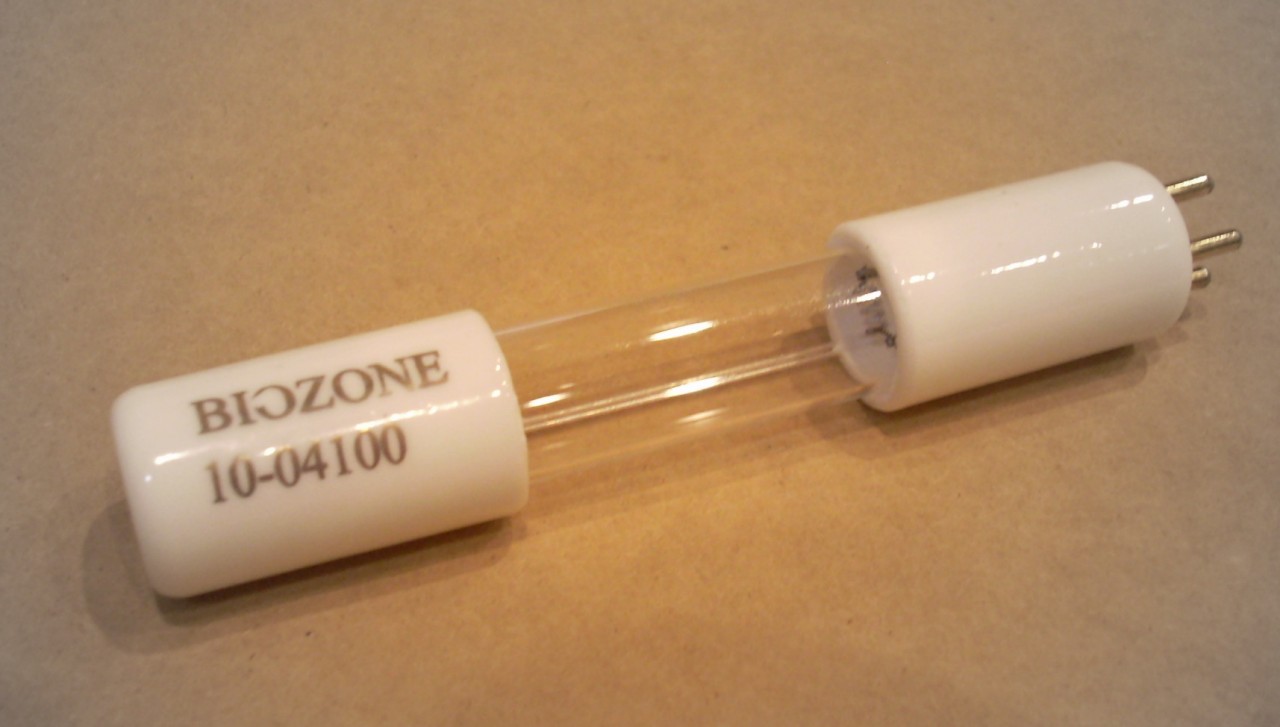

Biozone 4" 100% UV Lamp

It is highly recommended that you replace the UV Lamp in your Biozone Air Purifier once every year before the lamp burns out in order to maintain performance and to prevent the fuse from blowing out. If the UV lamp burns out, you must replace the fuse in order for your air purifier to begin working again. The Biozone UV Lamp is easy to replace. Follow the instructions on the bottom of this page to replace the UV lamp in your Biozone Air Purifier.

Fits the following Current Biozone Air Purifiers:

• Biozone 500

This Lamp Fits the following older models or units that are no longer sold:

• Travel 250T
• 102 Minizone
• 500-XPS
• 100R
• RS 50
• Ice 1
• Icezone 10
• 100 FS
• 100 V
• 200 FS
• 50 V

Instructions on How to Replace your UV Lamp:

1. Turn off the Air Purifier and unplug the unit from the electrical outlet.
2. On the back of the air purifier, push down on the two small latches at the top of the back panel. The panel will open downwards. The UV Lamp is mounted on this panel. (Older units do not have latches, you must unscrew all the screws on the back of the panel to access the lamp).
3. Gently lift the old lamp out of the lamp clamps that hold the lamp in place.
4. Locate the white lamp socket and pull the lamp socket off of the end of the UV Lamp.
5. Be careful not to touch the glass of the new UV Lamp, and replace the new lamp in the reverse fashion that you removed the old one.
6. Close the back panel, plug the air purifier back into an electrical outlet and turn on the unit. Check for a blue glow from the UV lamp viewing from the front of the air purifier. **If there is now glow, than you probably need to replace the fuse.**

If you have any problems replacing the UV Lamp in your Biozone Air Purifier, please contact us for assistance.
